Livestock
When you want to transport your valuable shipment in a strong, dependable, and efficient trailer, look no further than a Jamco single or double vented livestock trailer. Designed with the foresight and attention that our company has been recognized with for over 30 years, you will rest easy upon arriving at your destination knowing that your precious cargo will emerge safe and sound. Built with our unique tongue-and-groove double-thick aluminum interlocking plank walls and seamless, single-piece aluminum roof, Jamco trailers offer you and your livestock unequaled protection and durability. All Jamco Classic livestock trailers carry a seven year framewarranty and twenty year pro-rated warranty on plank walls.Specifications
Model | Hitch | Width | Height | Bed Length | Overall Length |
Livestock | Bumper | 6' or 7' | 7'6" | 12' or 16' | 15' or 19' |
Livestock | Gooseneck | 7' or 8' | 7'6" | 16' - 30' | 24' - 38' |
Features
- White baked on enamel finish
- Patented* tongue-and-groove double-thick interlocking aluminum plank walls
- Interlocking aluminum SuperPlank floor with crossmembers every 4.5
- Seamless, single-piece aluminum roof
- Aerodynamic nose design
- Heavy duty Diamond Plate aluminum teardrop fenders
- Fender signal lights
- Dual (Hi/Lo) tail lights
- Electric brakes on all wheels
- Electric breakaway kit
- Heavy duty wiring
- Sealed beam and shock-resistant lighting
- All DOT required lighting and striping
- 2 5/16 hitch coupler
- Single speed jack
- Modular wheel design
- Spare tire and carrier
- Spare tire cover (goosenecks)
- Tandem Dexter Torflex axles: 3,500 - 10,000 lb
- Escape door curbside
- Full swing rear door with 33 slider (vented)
- Heavy duty hinges on rear door
- Single or double 12 high livestock vents with lexan
- Bed vents under gooseneck
- Bed divider mounted 6 off floor with slam lock latch
- Full width fold down neck divider (goosenecks)
- Interior spot light mounted at rear corner
Popular Options
- Logo or other custom graphics
- Extra width and height
- Additional doors on side
- Windows in side
- Interior tie-downs
- Additional interior lights
- Second deck
- Full height loading ramp
- Ground loading ramp
- Hydraulic brakes
- Various tire and axle sizes available
- Single, tandem, and tri-axle configurations
Floor Plans
Livestock

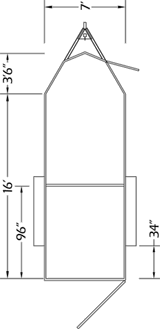

Bumper Pull
Livestock

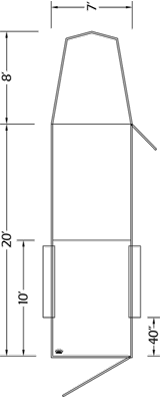

7' Wide Gooseneck
Livestock

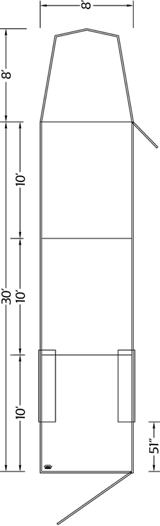

8' Wide Gooseneck
